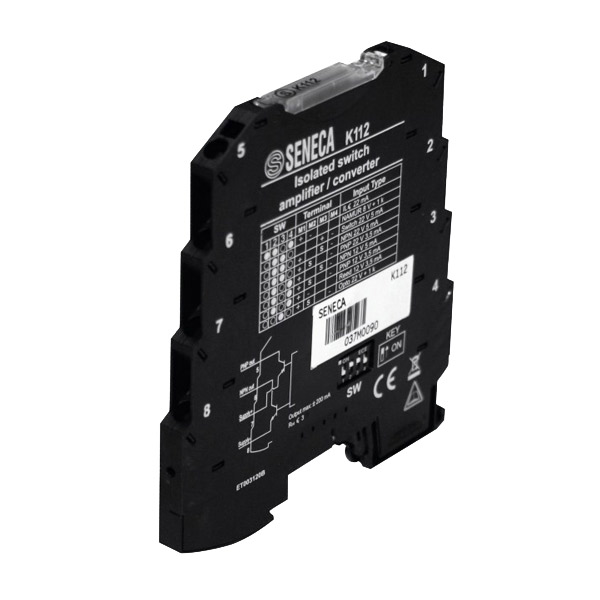

K112

$87.50



Universal digital coupler/isolator

The K112 isolation module has been designed to adapt specific on/off sensors to a standard NPN and/or PNP connection. It’s a useful solution to interface a proximity sensor with a plc. The two outputs (PNP and NPN) can be utilized simultaneously. A 2-way galvanic isolation among input // output circuits assures the integrity of your datas.

Description

TECHNICAL DATA

ORDER CODE : K112
DESCRIPTION: Universal digital coupler/isolator
POWER SUPPLY: 19,2-30 V
INPUT: Contact (IEC 1131.1 tipo 1), Namur (DIN 19234, EN 60947), NPN or PNP (12 or 22 V) 2/3 wires, reed, photocell, max frequency 400 Hz
POWER TRANSDUCER: 8±0,6 V, 12±1 V, 22±2 V
OUTPUT: Simultaneous PNP and NPN, max current 200 mA, max voltage 30 V (continuous), 50 V (pulse)
INSULATION: 1,5 kVac @ 2-way
CONNECTION: Spring clamp, SMART SUPPLY technique
COMPACT DIMENSION: 93,1 x 102,5 x 6,2 mm (l x h x d)
OPERATING TEMPERATURE: -10..+65°C

SHIPPING AND EXPORT INFORMATION

PRODUCT CODE K112
GROSS WEIGHT kg 0.075
ORIGIN IT
CN (COMBINED NOMENCLATURE) 85437090
ECCN EAR99
